Product Information



Manufacturer: Mach 1 Packaging Ltd.




Price: MSRP from the high-$7,000's CAD


State: New


Type: Turntable


Structure: Low Profile


Controls: Semi-Automatic


Film Carriage: Powered Pre-Stretch


Mach 1 SONIC LPX Low Profile Semi-automatic Pallet Stretch Wrapper

This is a very popular product, meeting the demand for a standard duty, portable, low profile turntable, semi-automatic, with pre-stretch, and available options to meet common needs.

  • Semi-automatic machine, does not require the active participation of the operator throughout the whole wrap cycle, allowing him/her to work productively elsewhere while the load is wrapped automatically
  • Pre-stretch film carriage maximizes the stretching of the film, significantly reducing the cost of packaging per load
  • Pre-stretch produces superior shipping package
  • Full array of available options accommodates needs for over-sized loads and wrap pattern variations
  • Fork lift portable
  • No air supply required
  • Minimal installation costs
  • Requires operator to manually load the turntable, attach the film to the load, start the wrap cycle, cut and seal the film, and remove the load from the turntable
  • Load supporting turntable has maximum load weight limitations
  • May not be suitable for unstable loads which cannot accommodate rotation
  • Turntable wearing parts require more frequent maintenance
  • Need ramp to load with pallet trucks or powered-walkies

Common Options:

  • Standard duty loading ramp for pallet jack
  • Extended heavy duty ramp for electrical walkie
  • Wrap height extension for taller pallets
  • Frame extension for larger than standard pallets

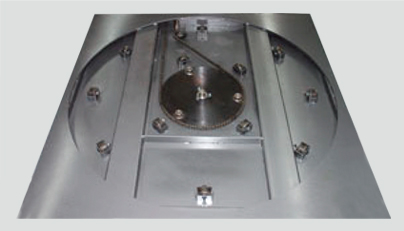

  • Turntable surround deck for pit mounting (see Mach 1 SONIC LPS)
  • Scale package with digital weight indicator
  • Auto film cut
  • 30” film carriage
  • 70” diameter turntable
  • "Window" and "Door" wrapper upgrade



  • Rotation Speed: 0-16 RPM
  • Loads Per Hour: Up to 40 LPH (Dependant upon wrap pattern selection, loading method, and operator proficiency.)

Load Specifications:

  • Maximum Load Size: 56" W x 56" L x 86" H (80" Load diagonal)
  • Maximum Load Weight: 5,000 lbs

Film Delivery:

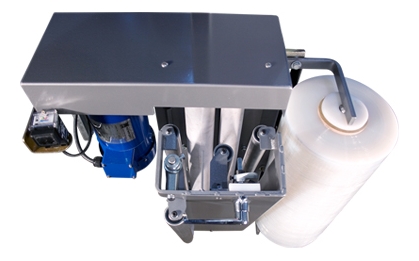

  • Film Delivery: Mach 1 "X-STRETCH" pre-stretch film carriage
  • Pre-stretch: 250% Factory default pre-stretch level (other pre-stretch levels available)
  • Post-stretch: Electronic film tension control
  • Film Type: Machine film, 20" Roll width, 10" Diameter

Rotation System:

  • Turntable Rotation System: Chain driven, 1/2 HP 90 VDC (Raytron DC drive board)
  • Turntable Diameter: 59"
  • Support: PRO-GLIDE turntable support system

Lift System:

  • Film Carriage Lift: Chain driven, 1/2 HP 90 VDC (Raytron DC drive board)

Power Requirements:

  • Power Requirement: 120 VAC, 15A, Single Phase, 60 Hz
  • Pneumatic Requirement: none


  • Controller: DIGI-TECH control unit (Raytron micro-controller)
  • Operator Interface: Membrane keypad with digital display
  • Wrap Programs: Standard wrap up & down, gentle cycle feature (for light or unstable pallets), reinforce wrap function
  • Wrap Parameters: Top wraps (1 to 10), bottom wraps (1 to 10)

Cut and Seal:

  • Manual process, by operator


  • Frame: Welded steel
  • Portability: Forklift tubes


  • 3/5 years limited



Delivery: Stock to 4 weeks for standard machine (dependent upon current shop loading and options chosen)


Attachment: Mach 1 SONIC-LPX.jpg


Attachment: Mach 1 SONIC-LPX - Sales Brochure.pdf


Attachment: Mach 1 SONIX LPX Window Wrapper - 3D.jpg








Product Options

  • Standard equipment options allow you to adapt the machine for oversize and heavier loads.
  • Other options allow you to streamline your production process and increase efficiency.
  • Custom options and modifications are available to meet specific needs.

Pricing for options is in CAD or USD.
Discounts off list pricing shown are available.

Yes+ $990.00
Yes+ $250.00
Yes+ $475.00
Yes $0.00
Yes+ $125.00
Yes+ $350.00
Yes+ $550.00
Yes+ $1,100.00
Yes $0.00
Yes+ $625.00
Yes+ $925.00
Yes+ $1,225.00
Yes+ $750.00
Yes+ $850.00
Yes+ $250.00
Yes+ $125.00
Yes+ $150.00
Yes+ $250.00
Yes $0.00
Yes+ $125.00
Yes $0.00
Yes $0.00


* All products are designed for operation in a typical warehouse environment (dry, clean, heated).

Options may be available to adapt these machines for operation in other environments (eg. cold, wet, dusty, etc.).

Operation of these machines in conditions for which they were not designed might reduce the life expectancy of the machine and/or negate the warranty.
